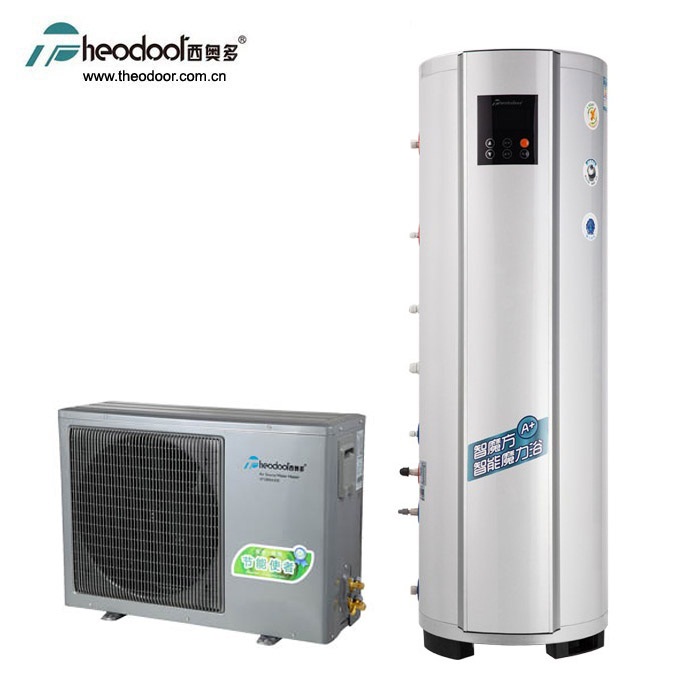

Domestic Split Type Intelligent Cube Series
Features:
Powerful heart: International brand “Panasonic” compressor, stable operation & energy-efficient.
Energy-efficient: Huge corrugated hydrophilic aluminum foil heat exchanger fin, higher capacity.
Elegant exterior: colorful steel shell, digital automatic welding technology, higher corrosion proof.
Energy saving and insulation: 50mm thickness and 40kg/m3 density polyurethane disposal foaming thermal insulation.
Flow resisting mixed-proof: Double thermal sensor to control water temp accurately, prevent hot and cold water mixing.
Reverse defrosting: Smart reverse defrosting control technology, unaffected by cold weather.
Applicable occasion: Family shower for 2-8 people; Spa; Kitchen; Sanitary Water Use;
Applicable ambient temperature: -7°C ~ 43°C
Precise temperature control, hot water temperature can reach up to 70℃.
Theodoor Air Source Water Heater , Water pump and the host will be perfect for the whole integration m, it has many ways to install , Can solve any problen of housing locations , Noble and elegant , the classic interpretation of fashion .
A Wide Range of Security Protection
Security Protection: ground fault circuit interrupter, leakage current checking, Ground Protection
Intelligent Protection System: protection of pressure voltage, motor overload protection, over-temperature protection
Safety Valve to Protect: Inside water temperature and pressure sensor, anyone value of more than security, it will be start relief
Theodoor heat pump work principle ：
The system follows carnot cycle principole. Driven by Electricity , its working substance absorbs the latent heat in the air or other low-temperature heat source , and waste heat let out of living or industry , compresses it to heat by compressor , exchange , exchange heat with water to higher the water temperature , 1 electricity can prduce heat equal to 4 electricity .it’s a new water heating equipment .
Energy Saving
Expenses comparison- 1 ton water to heat from 15℃ to 55℃
Name | Energy Source | Energy Price | Average Expenses |
Solar water heater and electronic auxiliary (Calculated for 90-120 days electronic auxiliary | Solar energy and electricity | Electricity 0.8RMB/Degree Free solar energy | 13RMB/Ton |
Diesel oil boiler | Diesel oil | 4.9RMB/Kg | 32RMB/Ton |
Fuel gas water heater | Gas | 6.0RMB/Kg | 39rmb/Ton |
Electrical water heater | Electricity | 0.8RMB/degree Free solar energy | 9RMB/Ton |
Environmental Protection
Heat comes from air, no exhaust gas produced. Protect our environment is social morality.
According to the study indicated that, for each unit of electricity ,the consumption of fossil material to about 0.67Kg of carbon dioxide release. China’s average temperature and a five-person households use hot water sa an example, one-year results of the air to water heater, carbon dioxide emissions can be reduced to 500kg, And save a few thousand dollars per year of liquefied gas and electricity costs .
Easy Install
Remark:

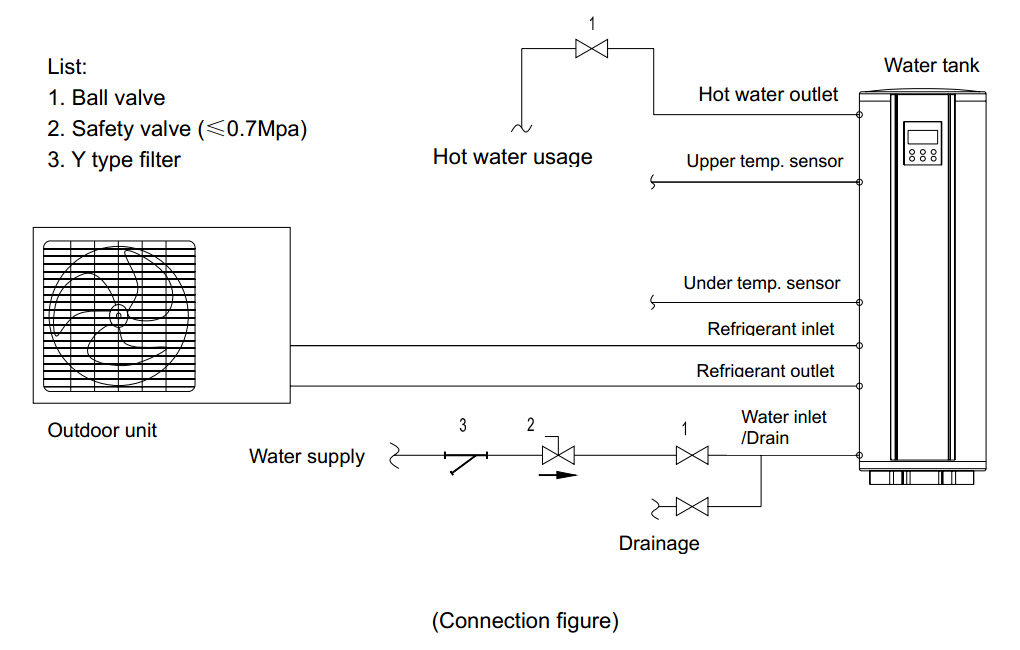

1. The above drawing is for reference to identify the name of each part. Details are subject to real unit.
2. The drawing of “Electric Heater hole” is only for the unit with Auxiliary heater models; other models without auxiliary heater function are not available.
3. There are two “Circulation Water Hole” for optional connection. It can be available when the user requests an external connection for hot water circulation. Normal models are without these holes.
Choose which sizes of water tank is related to the number of people using hot water, the number of bathrooms, whether there are bathtub, kitchens and other hot water consumption and so on.
The air source water heater unit has many installation ways, It can be installed at veranda, kitchen, storage room and garage etc.
Air source heat pump is not direct heating by the heating element, but with a small amount of electric driving the main unit's compressor to work, the low temperature air is compressed to high temperature air , through the pipeline circulation system to heat the water, the power consumption is only 1/4 of the traelectric water heater.
Focus on environmental protection and energy saving industry for 15 years, the R&D team inherited Germany strict standards and superb technology, at the same time keep innovation, had insight into the market demand, made the perfect integration of technology and application, Theodoor has been moving forward in the forefront of the times.
